Automatic Granule Filling and Sealing Machine
The Fully Automatic Granule Back-Seal Bag Packaging Machine is a versatile, high-efficiency packaging solution designed for granules, suitable for industries such as food, medicine, daily chemicals, pesticides, and hardware. It integrates filling, metering, sealing, coding, and labeling in one automated process, delivering airtight, aesthetically pleasing packages at 40–60 bags per minute.
Additional information
| Packaging Speed | 40–60 bags/min |
|---|---|
| Metering Range | 1–100g |
| Film Width | ≤280 mm (customizable) |
| Bag Size | L: 40–150 mm, W: 40–140 mm |

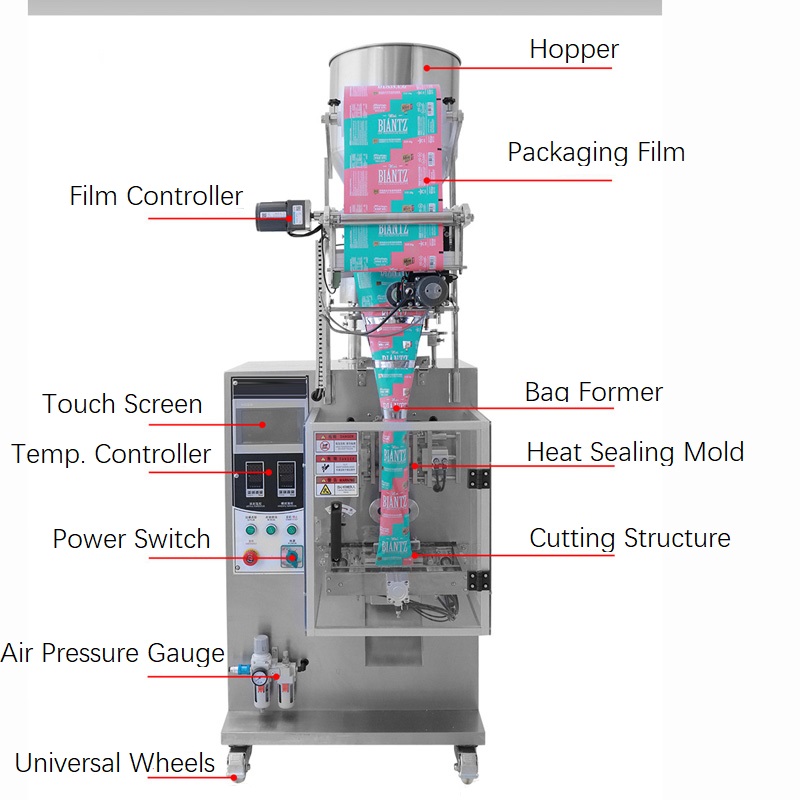

1.Filling & Metering: Granules are fed via hopper and precisely measured using volumetric cups (1–100g, customizable).
2.Film Forming: Packaging film is shaped into bags by a customized 1:1 bag former for smooth film feeding.
3.Sealing: Vertical and horizontal heat-sealing molds (fine steel engraved, customizable patterns) ensure tight, leak-proof seals.
4.Coding/Printing: Ribbon coder applies clear batch/date codes on various films using imported hot-print technology.
5.Cutting: Middle-cut knife (serrated, flat, or round-corner options) ensures uniform edges.
6.Output: Finished back-seal bags (customizable to three-side, four-side, or shaped bags) are discharged.
Product Details
Features
- High Speed: 40–60 bags/min (material-dependent).
- Food-Grade 304 Stainless Steel: Durable, hygienic, corrosion-resistant.
- Airtight Sealing: Tight seals with no leakage; customizable patterns (mesh, straight, floral).
- Intelligent Touchscreen: User-friendly branded panel for easy operation.
- Safety Cover: Transparent protective hood for safe monitoring.
- Customizable: Bag size, sealing type, knife style, and metering range tailored to needs.
- Wide Application: Handles regular/irregular, loose, strip, or block granules (e.g., seeds, herbs, nuts, pills, feed, desiccant).
- Low Maintenance: Simple ribbon coder; easy upkeep.
Specifications
| Parameter | Specification |
| Packaging Speed | 40–60 bags/min (material-dependent) |
| Metering Range | 1–100g (volumetric cup, customizable) |
| Film Width | ≤280 mm (customizable) |
| Bag Size | L: 40–150 mm, W: 40–140 mm |
| Sealing Type | Back-seal (custom: three-side, four-side, shaped) |
| Sealing Pattern | Mesh (custom: straight, floral) |
| Voltage/Power | 220V/380V, 50/60Hz, 1.35 kW |
| Machine Weight | ~180 kg |
| Dimensions (L×W×H) | 900 × 800 × 1700 mm |
| Packaging Materials | Composite film/paper, PE, nylon/PE, polyester/AL/PE, tea filter paper, etc. |
| Knife Type | Serrated (custom: flat, round-corner) |
| Air Consumption | 0.8 MPa, 0.4 m³/min |
| Automation Level | Fully automatic |
| Applicable Materials | Granules (seeds, herbs, nuts, pills, feed, desiccant, etc.) |
| After-Sales | 1-year warranty, lifetime maintenance |
