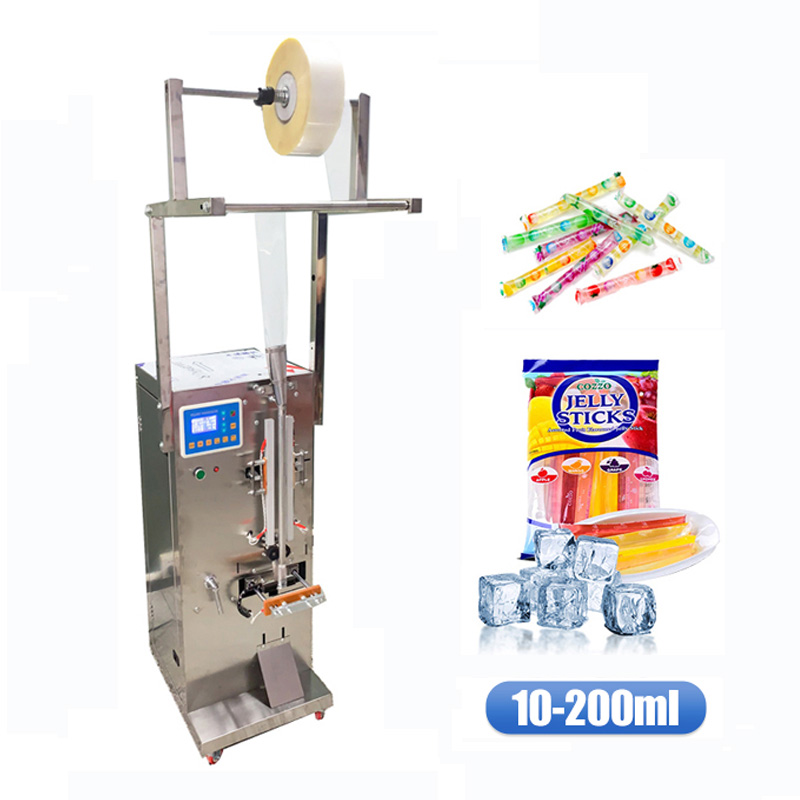

Ice Pop Filling and Sealing Machine
The Ice Pop Filling and Sealing Machine is designed for precise weighing, filling, packaging, and sealing of liquid products such as purified ice lollies, ice cream, jelly, and similar items. It ensures accurate filling volume, consistent sealing quality, and efficient production for small to medium-scale operations.
Additional information
| Weight/Volume Range | 10-200ml |
|---|---|
| Pressure | ±1% |
| Film Width | 5-20cm |
| Bag Length | 1-18cm |
| Speed | 10-25(bags/min) |
| Sealing Style | Three side seal / backsid seal |

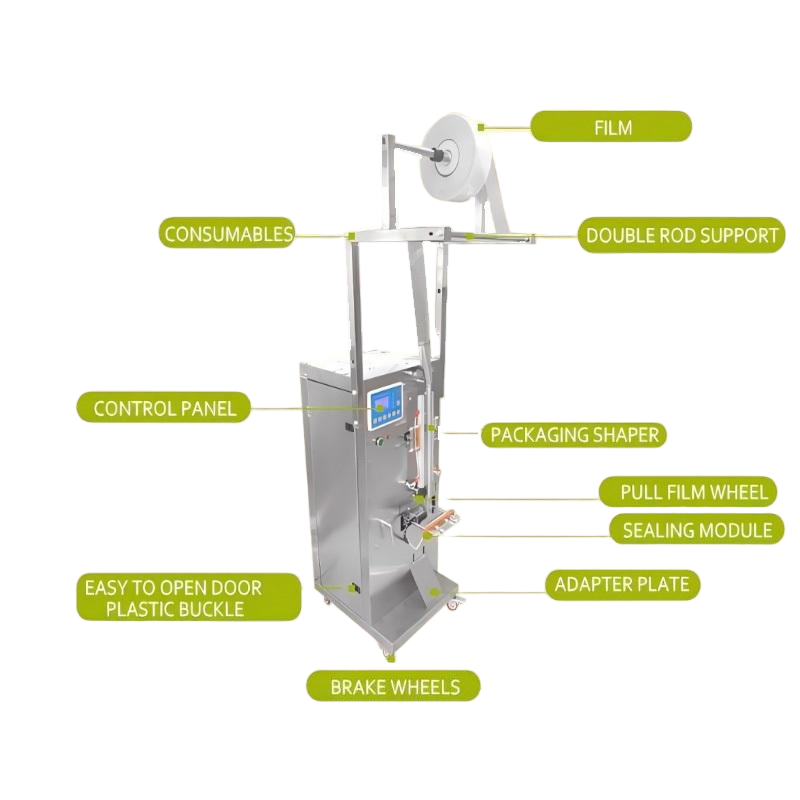

The small liquid packaging machine integrates film forming, quantitative filling, sealing, and cutting in a fully automated process. It starts with precise film feeding and positioning, followed by tube forming and vertical sealing. Liquid is accurately metered and filled via a piston or peristaltic pump, then horizontally sealed and cut into individual sachets, ensuring efficient, leak-free packaging.
Product Details
Product Features
- Accurate Filling & Sealing: Provides consistent liquid filling and reliable sealing for ice pops, jelly, or similar products.
- Adjustable Volume & Speed: Supports flexible filling range from 10–200ml at 10–25 bags per minute.
- Versatile Sealing Options: Compatible with three-side and back sealing styles.

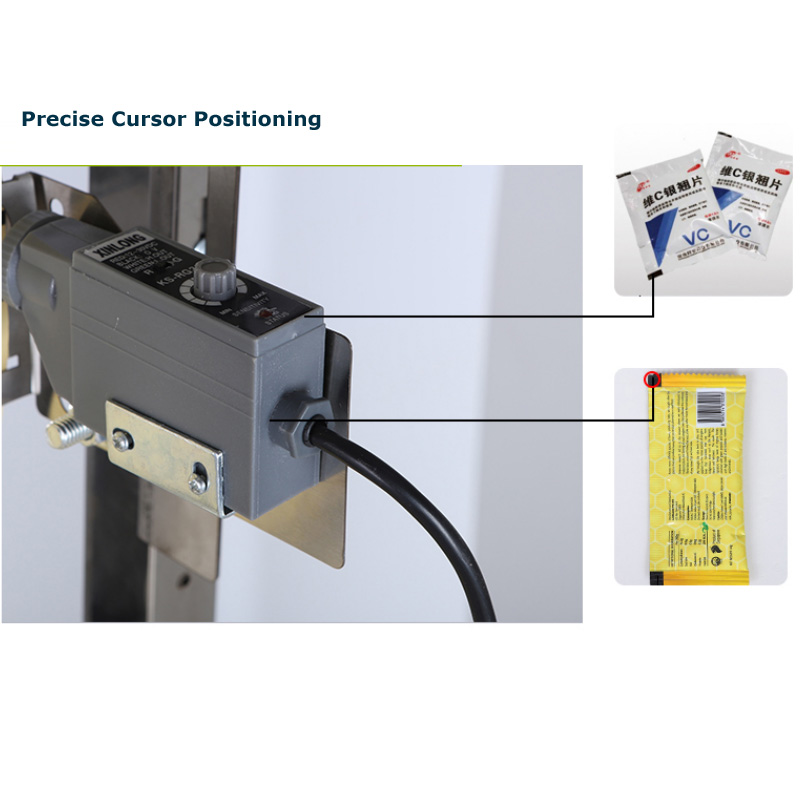

- Precise Cursor Positioning: Ensures accurate cutting of bags with colorful printed patterns.

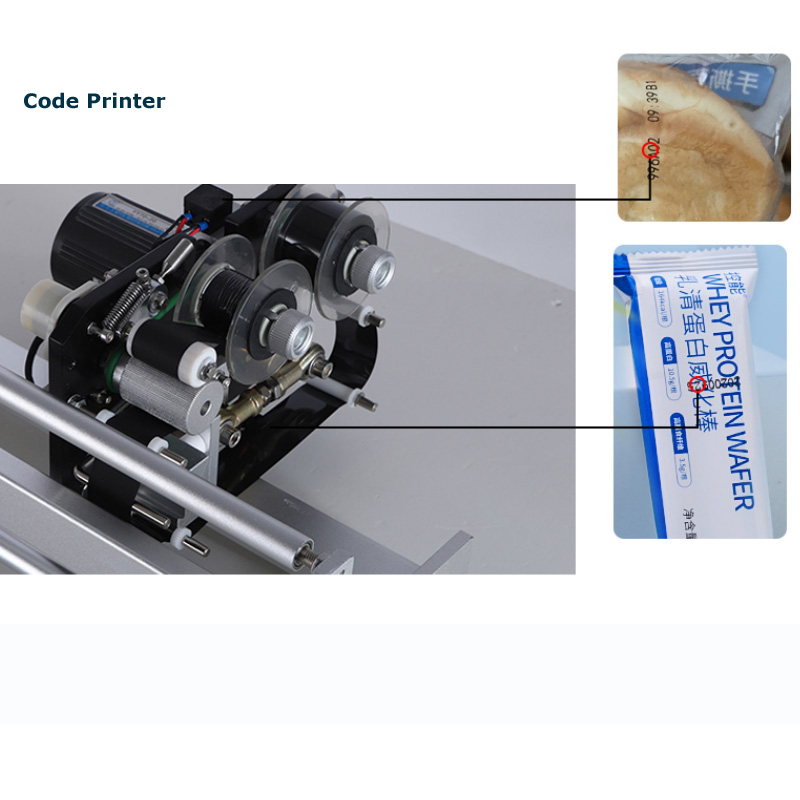

- Automatic Ribbon Code Printer: Integrated date coder automatically prints production dates during operation.
